Performance Unleashed with High Payload and Wide Radius

The CB20 is a new generation, collaborative robot specially designed for high-load applications.

Building upon the safety, efficiency, flexibility and ease of use of the current series, this model features a 20kg payload limit, opening up a wider range of applications for collaborative robots.

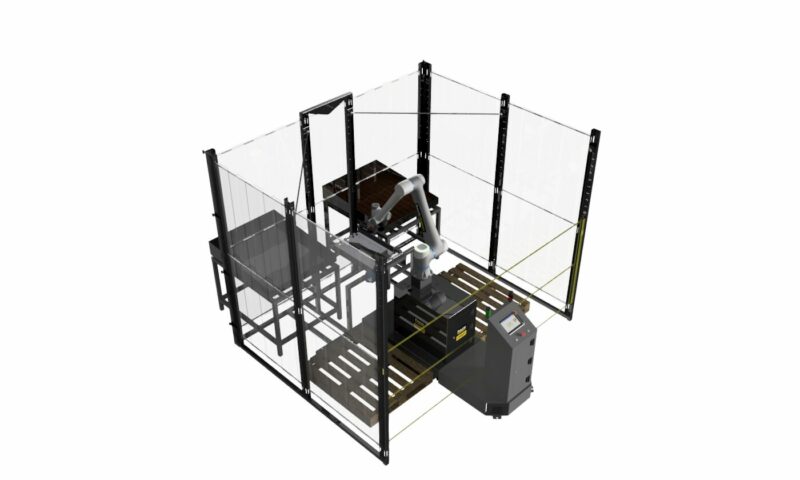

With a 1,700mm working radius, the CB20 can meet the demands of heavy-duty picking, packing and palletising.

  • Fast-paced, reliable and precise.
  • User friendly, no coding required.
  • Programmable in under 10 minutes.

Specifications
Payload 20kg – 40kg
Reach 1.8mt
Speed 6/8 moves per minute
Safety Available Options

Enquiry     +44 (0)1775 630 900

Features

Deploy with Ease
No coding knowledge required. Intuitive user interface that guides the operator through the set up process. Put the CB20 in action in 5-10 minutes.

User-friendly Design
The CB20 adopts an industry-first dual-channel end effector design, which can directly connect to multiple end tools. It also features
a visual status indicator at the base for intuitive recognition of operating status.
More Possibilities with High Payload and Wide Radius
The CB20 has a working radius of 1,700mm and a maximum payload
of 20kg. With advanced motion control algorithm, the CB20 operates more stably, with residual vibrations reduced by 50% during high-speed emergency stops.

High Protection Level for Safer Collaboration
The robot body and control box both achieve a high protection level of IP54. When overloaded, the robot will automatically sound an alarm. The CB20 also features an innovative electromagnetic brake protection, which reduces the end tool drop distance at power failure.

Watch in action
